100L Rotary Gear Oil Pump Transfer Circulation 12.5m3 H RY50-32-160

Product Details:

Place of Origin:	China
Brand Name:	Hydromatic
Certification:	ISO9001
Model Number:	RY50-32-160

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	On Request
Packaging Details:	Paper
Delivery Time:	7-10 working days
Payment Terms:	T/T, Western Union
Supply Ability:	1000/Month

Contact Now

All Products

Industrial Centrifugal Pump (21)

Centrifugal Slurry Pump (9)

Motor Diaphragm Pump (11)

Submersible Sewage Pump (11)

Three Spindle Screw Pump (9)

Magnetic Drive Centrifugal Pump (34)

Stainless Steel Screw Pump (8)

Hydraulic Oil Pump (97)

Multistage Water Pump (17)

Star Type Unloader (7)

Tricone Roller Bits (7)

Explosion Proof Axial Fans (3)

Industrial Valves (14)

Detailed Product Description

Model:

RY50-32-160

Description:

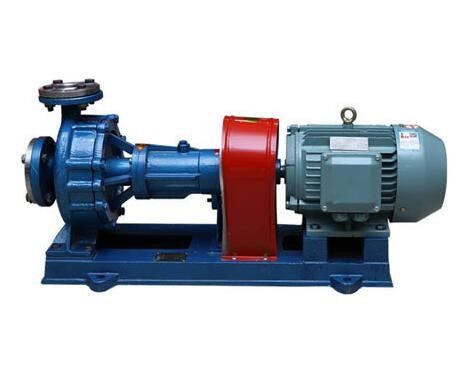

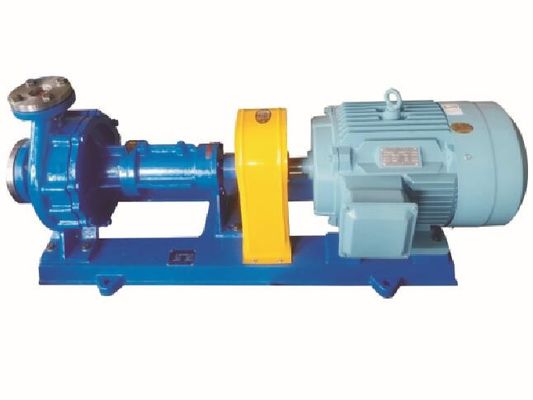

RY Type Hot Oil Circulation Pump

High Light:

100L rotary gear oil pump

12.5m3 h rotary gear oil pump

100L pumps for oil transfer

Product Description

RY Hot Oil Circulation Pump adopts the self-heat-radiating structure, change the traditional water cooling structure, make it more simple, small volume, economy operation cost, good performance, reliable operation.
Structure Characteristics:

1. Basic structure is single stage single suction cantilever feet support, pump suction is axial inhaled, discharge center vertical, and installed in a same base with motor.

2. RY Hot Oil Circulation Pump supported by double ball bearing, front end lubricated by lubricating oil, back end lubricated by grease, a guide tubing in the middle, to observe the conditions of sealing at any time and recovery of heat conduction oil.

3. Hot oil pump shaft seal:
(1) With the combination of packing seal and mechanical seal, packing seal use high temperature resistant packing, has the good thermal adaptability, while mechanical seal adopts high mechanical strength and wear resistance, good hard alloy material, which guarantees the sealing performance under high temperature conditions.
(2) Adopts imported polyethylene (PTFE) as lip shape seal, make the sealing performance much better, seal reliability of 25 times than rubber seal, and with very strong corrosion-resist ability.

Application Scope
1,Petro-chemical Industry
2,Oil Industry
3,Synthetic-fibre Industry
4,Textile Dyeing And Printing Industry
5,Plastic And Rubber Industry
6,Papermaking Industry
7,Timber Processing Industry
8,Construction Industry
Besides the above fields the pumps are also proper in machinery manufacruring,food processing,Medicine making and the circling system for oil supplying of the hot oil boiler , the circling system of the heating installation.

Performance Scope of RY Hot Oil Pump
1,Capacity : 1-500m3/h;
2,Delivery lift : 10-125m;
3,Temperature : -20.C-350.C;

The Ordering Code of RY tye pump

RY 100-65-200A
RY	100	65	200	A
Hot Oil Pump	The Inlet Diameter of Pump Case	The Outlet Dimeter of Pump Case	Vane wheel's Nominal Diameter of Pump Case	The First Cutting of Outer Diameter of The Vane wheel (D,E Represents Shaperforming wheel )

Performance Parameters:

Model	Capacity	Lift	Speed	Power kw		Efficiency	Motor-Y
	m 3 /h	m	r/min	Shaft	Power	η%
	m 3 /h	m	r/min	power	Distribution	η%
RY50-32-160	12.5	30	2900	1.9	3	57	100L
RY50-32-200	18	40	2900	3.92	5.5	50	132Sl
RY50-32-200A	16	32	2900	3.35	4	42	112M
RY50-32-250	12.5	80	2900	6.2	11	44	160Ml
RY65-50-160	20	32	2900	3.17	5.5	55	132S1
RY65-40-200	30	48	2900	6.3	7.5	62	132S2
RY65-40-200A	25	35	2900	4	5.5	59	132S1
RY65-40-250	25	80	2900	10.3	15	53	160M2
RY65-40-250A	20	51	2900	5.67	7.5	49	132S2
RY65-40-315	25	125	2900	18.9	30	45	200L1
RY65-40-315A	22.5	100	2900	15.3	22	40	180M
RY80-50-200	50	50	2900	9.7	15	70	160M2
RY80-50-200A	45	40	2900	7.8	11	63	160M1
RY80-50-200B	40	32	2900	6.37	7.5	55	132S2
RY80-50-250	50	80	2900	17.1	22	58	180M
RY80-50-250A	43	60	2900	12.8	15	55	160M2
RY80-50-315	50	125	2900	30.4	45	56	225M
RY80-50-315A	45	100	2900	23.6	30	52	200L1
RY100-65-200	100	50	2900	18.4	22	74	180M
RY100-65-200A	94	44	2900	16	22	70	180M
RY100-65-200B	87	38	2900	13.8	15	65	160M2
RY100-65-200C	80	32	2900	11.8	15	59	160M2
RY100-65-250	100	80	2900	32.06	37	68	200L2
RY100-65-250A	95	72	2900	29	37	64	200L2
RY100-65-250B	90	65	2900	26.2	30	61	200L1
RY100-65-250C	85	50	2900	20.3	30	57	200L1
RY100-65-315	100	125	2900	50.06	75	68	280S
RY100-65-315A	95	113	2900	45.23	55	64.63	250M
RY100-65-315B	90	100	2900	40.5	55	60.5	250M
RY100-65-315C	82	84	2900	34.76	45	54	225M
RY125-100-200	200	50	2900	35.4	45	77	225M
RY125-100-200A	178	40	2900	26.6	37	73	200L2
RY125-100-250	200	70	2900	47	55	80	250M
RY125-100-250A	190	63	2900	41.6	55	78	250M
RY125-100-250B	180	57	2900	37.9	45	74	225M
RY125-100-250C	170	51	2900	32.15	45	72	225M
RY125-100-250D	150	70	2900	40	45	70	225M
RY150-150-200	350	50	2900	60	75	80	280S
RY150-150-200A	313	40	2900	45	55	76	250M
RY200-150-400	350	50	1450	61.8	75	78	280S
RY200-150-400A	330	45	1450	52.8	75	77	280S
RY250-200-400	500	50	1480	86.2	110	79	315S
RY250-200-500	500	80	1480	136	160	76.5	315M
RY250-200-500A	400	50	1480	75	90	73	280M
