High Viscosity Roots Hydraulic Oil Pump Lobe Gear LCW-10/0.6 LCW-10/0.6

Product Details:

Place of Origin:	China
Brand Name:	Hydromatic
Certification:	ISO9001
Model Number:	LCW-10/0.6 LCW-10/0.6

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	On Request
Packaging Details:	Paper
Delivery Time:	7-10 working days
Payment Terms:	T/T, Western Union
Supply Ability:	1000/Month

Contact Now

All Products

Industrial Centrifugal Pump (21)

Centrifugal Slurry Pump (9)

Motor Diaphragm Pump (11)

Submersible Sewage Pump (11)

Three Spindle Screw Pump (9)

Magnetic Drive Centrifugal Pump (34)

Stainless Steel Screw Pump (8)

Hydraulic Oil Pump (97)

Multistage Water Pump (17)

Star Type Unloader (7)

Tricone Roller Bits (7)

Explosion Proof Axial Fans (3)

Industrial Valves (14)

Detailed Product Description

Model:

LCW-10/0.6 LCW-10/0.6

Description:

LCW Lobe Pump

High Light:

LCW Hydraulic Oil Pump

High Viscosity Roots Hydraulic Oil Pump

LCW 10 hydraulic lobe pump

LC/LCT/LCW High Viscosity Roots Pump

LC/LCT/LCW high-viscosity Roots oil pump is divided into belt drive and gear reducer drive. This pump has: low speed, high efficiency, small volume, large flow, low power consumption, strong self-priming ability, no need to draw oil, use Convenience and other features.
The scope of application of LC/LCT/LCW type Roots pump:
is suitable for transporting crude oil, petroleum, syrup, and yeast lightly alkaline liquids whose temperature is not higher than 140℃.

Application of LC/LCT/LCW Roots Oil Pump:
Petroleum, food and other industries.
Structural features of LC/LCT/LCW type Roots oil pump:

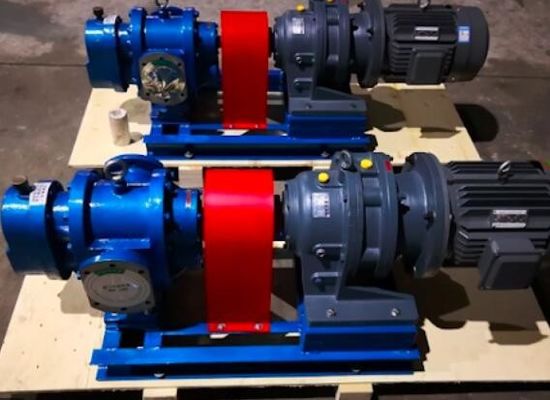

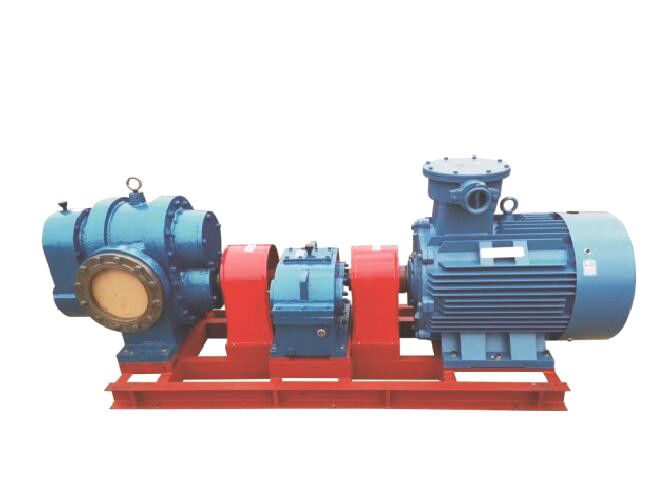

This series of Roots oil pump is composed of pump body, pump cover, shaft, gear, rotor, packing, gland and other components. The Roots oil pump has two forms of belt drive and gear reducer drive. It can be reversed. The shaft ends There is a skeleton oil-resistant seal, and an oil return device is installed in the middle to prevent air intake or oil leakage.

LC/LCT/LCW Type Roots oil pump performance parameters:

Model No.	Flow	Pressure	I/O Diameter	Allow Suction Hight	Transmission		Motor Power		Pump Efficiency %	Speed R/Min	Media temperature ≤℃	Weight KW	Application
	m 3 /h	Mpa	mm	m
					Ⅰ Retarder Type	II triangular belt code	Motor Type	Power KW

LC-10/0.6	10	0.6	40	6	ZD14	A1778		3	62	400	140	167	Diesel, motor oil, glycerin, petroleum, toothpaste, edible oil, heavy oil, etc.
							100L 2 -4
LC-18/0.6	18	0.6	50	6	ZD14	A1778	I	5.5	62	400	140	219
							132S-4
							II	4
							112S-4
LC-38/0.6	38	0.6	65	6	ZD14	B2350		7.5	65	400	140	269
							132M-4
LC-50/0.6	50	0.6	80	6	ZL200			11	70	445	140	1160
							180M-4
LC-80/0.6	80	0.6	200	6	ZL23.1			30	70	209	140
							225M-6
LC-100/0.6	100	0.6	200	6	ZL23.1			37	73	254	140
							250M-6
LCT-10/0.6	10	0.6	40	6	ZD14	A1778		3	62	400	140	167	Gasoline, solvent oil, kerosene, etc.
							100L 2 -4
LCT-18/0.6	18	0.6	50	6	ZD14	A1778	I	5.5	62	400	140	219
							132S-4
							II	4
							112M-4
LCT-38/0.6	38	0.6	65	6	ZD14	B2350		7.5	65	400	140	269
							132M-4
LCT-50/0.6	50	0.6	80	6	ZL200			11	70	445	140	1160
							180M-4
LCT-80/0.6	80	0.6	200	6	ZL23.1			30	70	209	140
							225M-6
LCT-100/0.6	100	0.6	200	6	ZL23.1			37	73	254	140
							250M-6
LCW-10/0.6	10	10	40	6	ZD14	A1778		3	60	400	140	167	Asphalt, condensate oil, heavy oil, etc.
							100L 2 -4
LCW-18/0.6	18	0.6	50	18	ZD14	A1778	I	5.5	60	400	200	219
							132S-4
							II	4
							112M-4
LCW-38/0.6	38	0.6	65	6	ZD14	B2350		7.5	64	400	200	269
							132M-4
LCW-50/0.6	50	0.6	80	6	ZL200			11	68	445	200	1160
							180M-4
LCW-80/0.6	80	0.6	200	6	ZL23.1			30	69	206	200
							225M-6
LCW-100/0.6	100	0.6	200	6	ZL23.1			37	71	254	200
							250M-6
