KCB-300 KCB-300 Crude Oil Transfer Pump 300L/Min Lubrication Gear Pump For Oil

Product Details:

Place of Origin:	China
Brand Name:	Hydromatic
Certification:	ISO9001
Model Number:	KCB KCB-300 KCB-300

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	On Request
Packaging Details:	Paper
Delivery Time:	7-10 working days
Payment Terms:	T/T, Western Union
Supply Ability:	1000/Month

Contact Now

All Products

Industrial Centrifugal Pump (21)

Centrifugal Slurry Pump (9)

Motor Diaphragm Pump (11)

Submersible Sewage Pump (11)

Three Spindle Screw Pump (9)

Magnetic Drive Centrifugal Pump (34)

Stainless Steel Screw Pump (8)

Hydraulic Oil Pump (97)

Multistage Water Pump (17)

Star Type Unloader (7)

Tricone Roller Bits (7)

Explosion Proof Axial Fans (3)

Industrial Valves (14)

Detailed Product Description

Model:

KCB KCB-300 KCB-300

High Light:

300L/min crude oil transfer pump

KCB crude oil transfer pump

300L/min Lubrication gear pump for oil

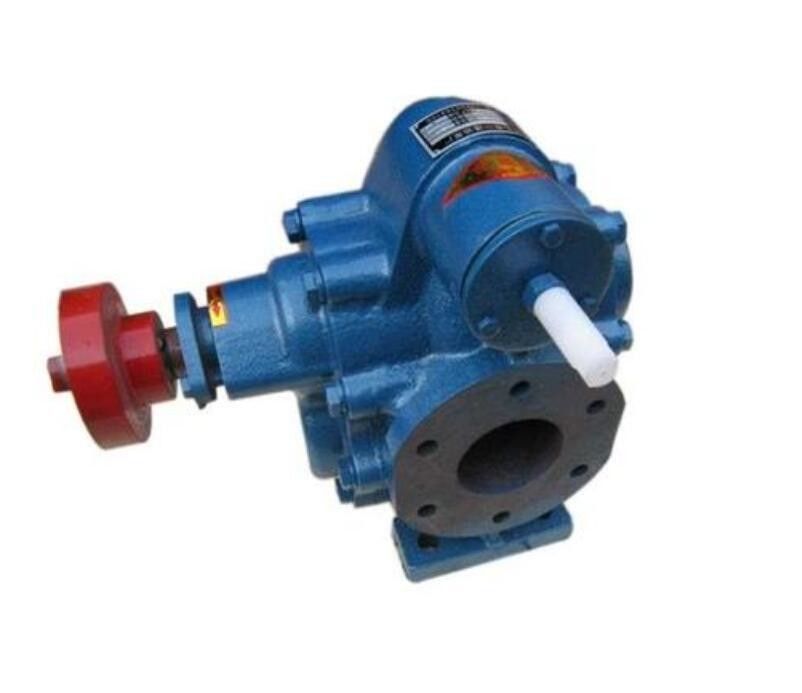

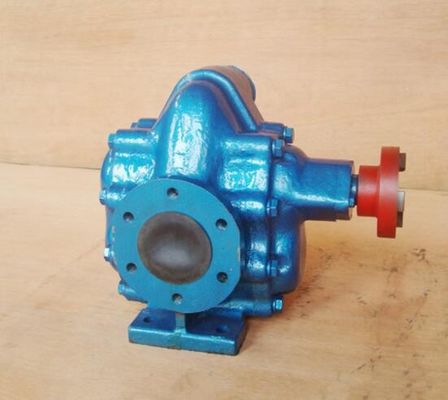

The KCB gear oil Pump is a higher flow, Low pressure external gear pump. Designed for the transfer of fuel oils,lubricating oil transfer,diesel,vegetable oil,solvent,coating,Palm Oil,kerosene,biodiesel.F.O., M.O., L.O.,petrol, benzene fluids with varying viscosities up to 1500cSt, the KCB is therefore designed for handling larger volumes of fuels and oils.

The self-priming nature of the gear pump design makes it ideal for applications with difficult suction conditions, for example where the fluid needs to be pumped over a long distance or when the pump is situated above the fluid.

Technical Data of KCB gear oil pumps

MODEL NUMBER:

KCB-18.3
KCB-33.3
KCB-55
KCB-83.3
KCB-200
KCB-300
KCB-483.3
KCB-633
KCB-960
KCB-1200
KCB-1600
KCB-1800
KCB-2500
KCB-3800
KCB-5400
KCB-7600
KCB-9600

Caliber:3/4 "-14 "
Capacity: 18.3-9600 lpm
Flow rate: 1.1 m³/h-570 m³/h
Rotational speed: 740 r/min-1440 r/min
Discharge pressure: 0.28 Mpa-1.45 Mpa
Suction head: 3-4 m
Motor power: 1.5KW-250KW.
Pump material can be cast iron, carbon steel, stainless steel

Being long coupled, these KCB helical gear pumps are easier to maintain as you can get to the pump head without removing the motor first, and are also more durable for continuous use as it has additional bearings in the pump head to share the strain of operation.

Features of the KCB Gear Pump:
Long coupled, self-priming helical gear pump
Smooth, pulseless flow
Additional bearings in pump head to share the strain of operation
Inline ports, supplied flanged as standard
Pressure differential safety valve - 1.5 times the rated pressure
Gland packing or mechanical seal
Suitable for lube and fuel oils between 5-1500cSt
230v, 380V,440V three phase 50Hz/60Hz motors available. IP55 as standard

Product details:

Model	Flow rate	Pressure	Motor power	Inlet&Outlet
Model	L/min	Mpa	kw	mm
KCB-18.3 (2CY1.1/1.45)	18.3	1.45	1.5-4	20
KCB-33.3 (2CY2/1.45)	33.3	1.45	2.2-4	20
KCB-55 (2CY3.3/0.33)	55	0.33	1.5-4	25
KCB-83.3 (2CY5/0.33)	83.3	0.33	2.2-4	40
KCB-200 (2CY12/0.33)	200	0.33	4-4	50
KCB-300 (2CY18/0.36)	300	0.36	5.5-6	70
KCB-483.3 (2CY29/0.36)	483.3	0.36	11-4	70
KCB-633 (2CY38/0.28)	633	0.28	11-6	100
KCB-960 (2CY58/0.28)	960	0.28	22-4	100
KCB-1200	1200	0.6	37-8	150
KCB-1600	1600	0.6	45-6	150
KCB1800	1800	0.6	55-8	200
KCB-2500	2500	0.6	75-6	200
KCB-3800	3800	0.6	110-6	250
KCB-5400	5400	0.6	160-6	250
KCB-7600	7600	0.6	200-6	350
KCB-9600	9600	0.6	250-6	350
