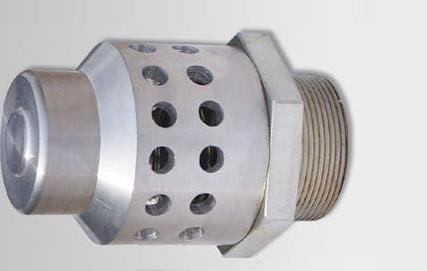

RF100 RF100 Negative Pressure Valve Suiable Temperature ≤200℃

Product Details:

Place of Origin:	China
Brand Name:	Hydromatic
Certification:	ISO9001
Model Number:	RF100 RF100

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	On Request
Packaging Details:	Paper
Delivery Time:	7-10 working days
Payment Terms:	T/T, Western Union
Supply Ability:	1000/Month

Contact Now

All Products

Industrial Centrifugal Pump (21)

Centrifugal Slurry Pump (9)

Motor Diaphragm Pump (11)

Submersible Sewage Pump (11)

Three Spindle Screw Pump (9)

Magnetic Drive Centrifugal Pump (34)

Stainless Steel Screw Pump (8)

Hydraulic Oil Pump (97)

Multistage Water Pump (17)

Star Type Unloader (7)

Tricone Roller Bits (7)

Explosion Proof Axial Fans (3)

Industrial Valves (14)

Detailed Product Description

MODEL:

RF100 RF100

High Light:

T6 Negative Pressure Industrial Valves

R2 Negative Pressure Industrial Valves

Adjusting Screw Negative Pressure Valves

Special negative pressure valve for fan:

RF50/RF80/RF100 is a series of products developed by our factory according to specific working conditions and parameters.It has the characteristics of sensitive action, simple debugging, large displacement, small size and no medium discharge reaction force, and can more effectively protect the safety of fans and equipment.

The special negative pressure valve RF50/RF80/RF100 for the fan will automatically open to release part of the pressure if it exceeds the design pressure when the fan is running. During the use of the three-leaf Roots blower, the parameters of the pressure relief valve should be adjusted at any time according to the different protection containers and pipelines, which are often encountered when setting and adjusting the parameters of the pressure relief valve

Adjustment of special negative pressure valve RF50/RF80/RF100 for fan:

1. Before leaving the factory, the opening pressure of the pressure relief valve should be adjusted one by one to the setting value required by the user.

2. Before installing the pressure relief valve on the protected equipment or before installation, the user must readjust it at the installation site according to the pressure of the famous brand to ensure that the set pressure value of the pressure relief valve meets the requirements. In specific operation, loosen the lock nut first after starting the fan, and rotate the adjusting lever counterclockwise until air is exhausted from the pressure relief valve. In the process of tightening the valve, if the pressure relief valve has discharged air before reaching the set pressure, turn the adjusting lever counterclockwise again until the air is no longer discharged, and finally tighten the locking nut.

3. Before rotating the adjusting screw, the inlet pressure of the valve should be reduced to less than 90% of the opening pressure to prevent the disc from being driven to rotate when rotating the adjusting screw, so as to damage the sealing surface.

4. In order to ensure the accuracy of the opening pressure value, the medium conditions during adjustment, such as medium type and temperature, should be as close as possible to the actual operating conditions. When the working temperature rises, the opening pressure generally decreases.

5. Conventional pressure relief valves are used to fix additional back pressure. When the opening pressure is adjusted after inspection (the back pressure is atmospheric pressure at this time), its setting value should be the required opening pressure value minus the additional back pressure value.

Type RF negative pressure valve size table:

Dimension＆Performace		RF50	RF80	RF100
Material For Valve		T6	T6	T6
Material For Valve		ZL101A	ZL101A	ZL101A
Material For Valve hat		ZL101A	ZL101A	ZL101A
Material For Valve Core		T6	T6	T6
Pressure Range		0.012～0.05 Mpa
Pressure Range		0.054～-0.08 Mpa
Suiable Temperature		≤200℃
Outerline Dimension	A	26	30	35
	H	128	162	166
	фC	ф78	ф90	ф125
	D	R2	R3	R4
Valve Conneting Type	Tapearb Threab
