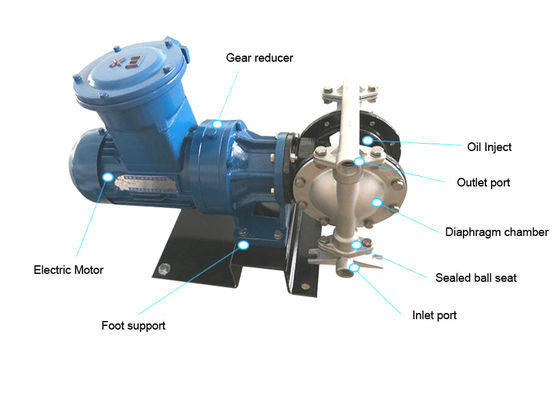

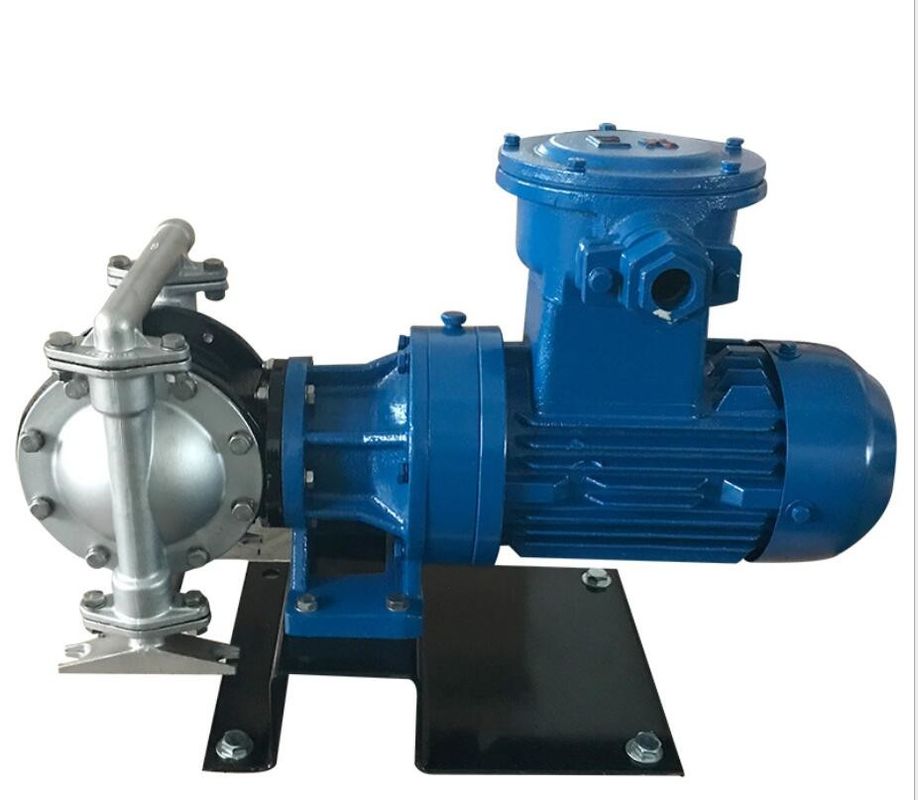

Overview of DBY Electric Diaphragm Pump
DBY series electric motor diaphragm pump is a new type of pump. In recent years, due to the breakthrough progress made in diaphragm material, more and more industrialization in the world adopt this type of pump to replace some centrifugal pumps and screw pumps. , To be used in petrochemical, ceramics, metallurgy and other industries, the design of DBY series electric diaphragm pumps are based on the prototype of the American ABEL company. The pump is suitable for low pressure, that is, the occasion where the outlet pressure is less than 3kgf/cm2
The main purpose of DBY electric motor diaphragm pump
DBY electric motor diaphragm pump is used for various highly toxic, flammable and volatile liquids.
DBY electric motor diaphragm pump is used for various strong acid, strong alkali and strong corrosive liquids.
DBY electric motor diaphragm pump can transport higher temperature medium 150℃.
DBY electric motor diaphragm pump is used as the front-stage pressure sending device of various filter presses. .
DBY electric motor diaphragm pump hot water recovery and circulation.
DBY electric motor diaphragm pump tank truck, oil depot, oil product loading and unloading.
DBY electric motor diaphragm pump sucks kimchi jam, mashed potatoes, chocolate, etc.
DBY electric motor diaphragm pump sucks paint, gum, pigment binder.
DBY electric motor diaphragm pump various porcelain glaze slurry cement grouting mortar slurry.
DBY electric motor diaphragm pump various rubber latex, organic solvents and fillers.
The DBY electric motor diaphragm pump uses the pump to clean the tanker and barge and absorb the sewage and residual oil in the tank.
DBY electric motor diaphragm pump hops and baking powder slurry, syrup, molasses.
DBY electric motor diaphragm pump sucks sewage and sediment in mines, tunnels, tunnels and sewers.
DBY electric motor diaphragm pump sucks and transports various special media.
DBY electric motor diaphragm pump technical parameters
DBY series electric motor diaphragm pump flow: 0-20m3/h;
Head of DBY series electric motor diaphragm pump: 30m;
DBY series electric motor diaphragm pump power: 0.37-4kw;
DBY series electric motor diaphragm pump speed: 1450r/min;
DBY series electric motor diaphragm pump caliber: 10-100mm;
DBY series electric motor diaphragm pump temperature: -15-+150℃;
Self-priming height of DBY series electric motor diaphragm pump: 5-7m.
DBY electric diaphragm pump model parameters
| Model | Diameter (mm) | Flow (m3/h) |
Head (m) |
Suction (m) |
Maximum allowable particles φ(mm) | Motor Power KW |
| DBY-10 | 10 | 0.5 | 30 | 3 | 1 | 0.55 |
| DBY-15 | 15 | 0.75 | 30 | 3 | 1 | 0.55 |
| DBY-25 | 25 | 3.5 | 30 | 4 | 2.5 | 1.5 |
| DBY-40 | 40 | 4.5 | 30 | 4 | 4.5 | 2.2 |
| DBY-50 | 50 | 6.5 | 30 | 4.5 | 8 | 4 |
| DBY-65 | 65 | 8 | 30 | 4.5 | 8 | 4 |
| DBY-80 | 80 | 16 | 30 | 5 | 10 | 5.5 |
| DBY-100 | 100 | 20 | 30 | 5 | 10 | 5.5 |
