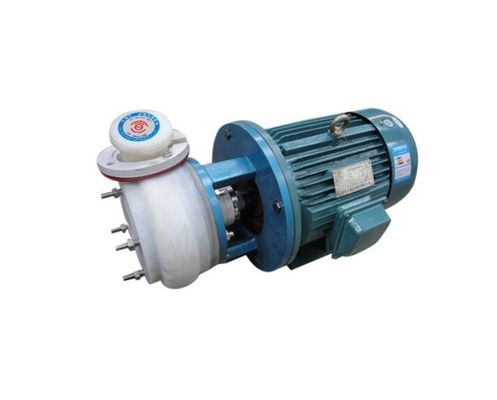

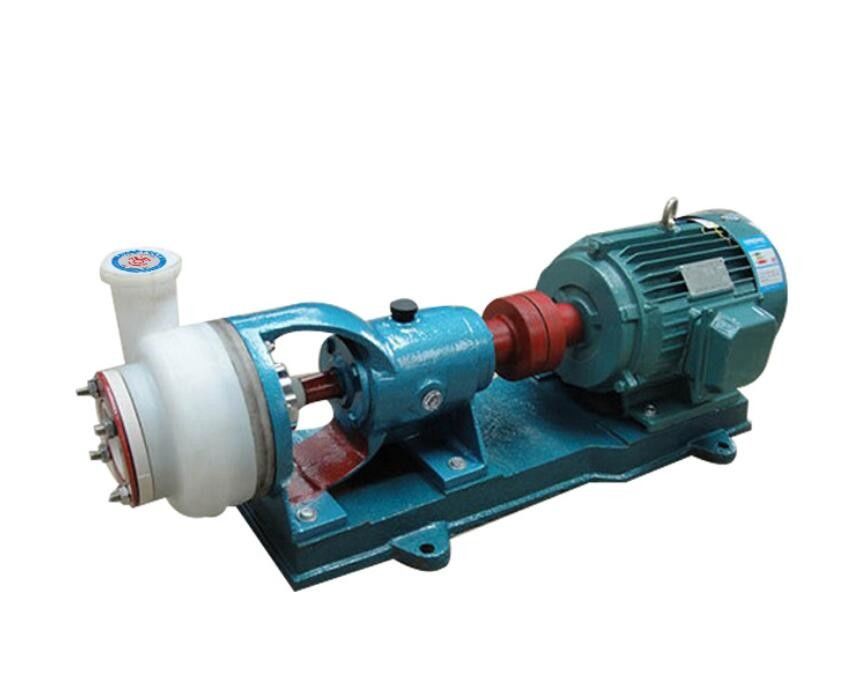

FSB Centrifugal Pump
Application:
The pickling and painting in automobile manufacturing; the conveying of elecrolyte in the melting of nonferrous metals ; the process flow for the treatment of chlorine water and effluent and acid feeding in the ion-exchange membrane item.Operating temperature: -20oc- +95oc.
Design peculiarity:
With fluid-contact parts made totally with fluoroplastic-alloy,model FSB, FSB-D centrifugal pumps have compact construction,and are simple in operation,while their price is low.Their pump case,impeller,mechanical seal are interchangable.They are popular in industries such as pesticides,electronics, and papermaking...
FSB Centrifugal Pumps Structures & Material:
| No | Part name | Material |
| 1 | Pump body | Fluoroplastics alloy |
| 2 | Impeller | Fluoroplastics alloy,45#Steel |
| 3 | Adjusting ring | Fluororubber |
| 4 | Support | HT200 |
| 5 | Mechanical Seal | Polytetrofluoroethylene,aluminum oxide |
| 6 | Rear cover | Fluoroplastics alloy |
FSB Centrifugal Pumps Model Ordering Code:
40 FSB - 30 L
40-----Suction Diameter
FSB----- FSB Series pump
30----- Head
L---- Design No.
FSB Centrifugal Pumps Models and Parameters:
| Model | Capacity(M3/h) | Head | caliber | Motor power | Speed | Vacuum High(m) | Efficiency(%) | |
| (m) | Suck(mm) | out(mm) | (kw) | (r/min) | ||||
| 25FSB-10L | 1.5 | 10 | 25 | 20 | 1.5 | 2900 | 6 | 29 |
| 25FSM-18L | 3.6 | 18 | 25 | 20 | 2.2-3 | 2900 | 6 | 27 |
| 40FSB-15L | 5 | 15 | 40 | 32 | 3 | 2900 | 6 | 40 |
| 40FSB-20L | 10 | 20 | 40 | 32 | 3 | 2900 | 6 | 42 |
| 40FSB-30L | 10 | 30 | 40 | 32 | 3-4 | 2900 | 6 | 38 |
| 40FSB-40L | 10 | 40 | 40 | 32 | 4-5.5 | 2900 | 5.5 | 35 |
| 40FSB-50L | 10 | 50 | 40 | 32 | 5.5-7.5 | 2900 | 5 | 33 |
| 50FSB-20L | 15 | 20 | 50 | 40 | 3-4 | 2900 | 6 | 51 |
| 50FSB-25L | 15 | 25 | 50 | 40 | 4 | 2900 | 6 | 49 |
| 50FSB-30L | 15 | 30 | 50 | 40 | 4 | 2900 | 6 | 44.5 |
| 50FSB-40L | 15 | 40 | 50 | 32 | 4.5-5.5 | 2900 | 5.5 | 35 |
| 50FSB-50L | 15 | 50 | 50 | 32 | 5.5-7.5 | 2900 | 5.5 | 33 |
| 50FSB-63L | 15 | 63 | 50 | 32 | 11 | 2900 | 5.5 | 30 |
| 65FSB-32L | 29 | 32 | 65 | 50 | 5.5 | 2900 | 6 | 57 |
| 65FSB-40L | 29 | 40 | 65 | 40 | 11 | 2900 | 5.5 | 53 |
| 65FSB-50L | 29 | 50 | 65 | 40 | 15 | 2900 | 5.5 | 46 |
| 65FSB-64L | 29 | 64 | 65 | 50 | 15-18.5 | 2900 | 5.5 | 44 |
| 80FSB-20L | 50 | 20 | 80 | 65 | 5.5 | 2900 | 6 | 69 |
| 80FSB-30L | 50 | 30 | 80 | 65 | 7.5 | 2900 | 5.5 | 64 |
| 80FSB-34L | 50 | 34 | 80 | 65 | 11 | 2900 | 5.5 | 64 |
| 80FSB-40L | 50 | 40 | 80 | 50 | 11-15 | 2900 | 55 | 60 |
| 80FSB-50L | 50 | 50 | 80 | 50 | 15-18.5 | 2900 | 6 | 53 |
| 80FSB-55L | 50 | 55 | 80 | 50 | 15-18.5 | 2900 | 5.5 | 47 |
| 80FSB-80L | 50 | 80 | 80 | 50 | 30-37 | 2900 | 5.5 | 36 |
| 100FSB-32L | 100 | 32 | 100 | 80 | 18.5-22 | 2900 | 5.5 | 70 |
| 100FSB-40L | 100 | 40 | 100 | 80 | 18.5-22 | 2900 | 5.5 | 70 |
| 100FSB-50L | 100 | 50 | 100 | 65 | 22-30 | 2900 | 5.5 | 62 |
| 125FSB-32L | 125 | 32 | 125 | 80 | 22 | 2900 | 5.5 | 72 |
| 125FSB-40L | 125 | 40 | 125 | 80 | 30 | 2900 | 5.5 | 70.9 |
| 125FSB-50L | 125 | 50 | 125 | 100 | 37 | 2900 | 5.5 | 64 |
| 150FSB-22L | 190 | 22 | 150 | 100 | 18.5 | 1450 | 6 | 77 |
| 150FSB-35L | 190 | 35 | 150 | 100 | 30 | 1450 | 5 | 75 |
| 150FSB-42L | 190 | 42 | 150 | 100 | 55 | 1450 | 4.5 | 70 |
| 200FSB-20L | 200 | 20 | 200 | 150 | 37 | 1450 | 3 | 81 |
