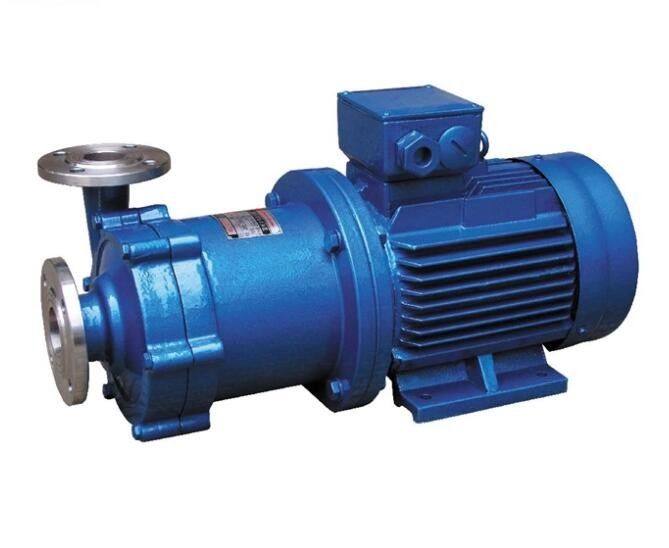

CQ Stainless Steel Centrifugal Pump

CQ Stainless Steel Centrifugal Pump

  • CQ Stainless Steel Centrifugal Pump
  • CQ Stainless Steel Centrifugal Pump
CQ Stainless Steel Centrifugal Pump
Product Details:
Place of Origin: China
Brand Name: Hydromatic
Certification: ISO9001
Model Number: 8CQ-2 10CQ-3
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: On Request
Packaging Details: Paper
Delivery Time: 7-10 working days
Payment Terms: T/T, Western Union
Supply Ability: 1000/Month
Contact Now
All Products
Industrial Centrifugal Pump (21)
Centrifugal Slurry Pump (9)
Motor Diaphragm Pump (11)
Submersible Sewage Pump (11)
Three Spindle Screw Pump (9)
Magnetic Drive Centrifugal Pump (34)
Stainless Steel Screw Pump (8)
Hydraulic Oil Pump (97)
Multistage Water Pump (17)
Star Type Unloader (7)
Tricone Roller Bits (7)
Explosion Proof Axial Fans (3)
Industrial Valves (14)
Detailed Product Description
MODEL: 8CQ-2 10CQ-3
Highlight:

CQ Stainless Steel Centrifugal Pump

,

Chemical Stainless Steel Centrifugal Pump

,

160kw mag drive centrifugal pump



CQ Magnetic Drive Chemical Pump



Performance Range:


Current capacity: 0.8 ~ 200m3/h;
Lifts: 12 ~ 80m;
Rotational speed: 2900r/min;
Power: 0.37 ~ 160kw;
Caliber: 10 ~ 150mm;
Is suitable the temperature: -20 ~ 100 °C



Application:
pharmacy,
petroleum industry,
chemical industry,
electroplating industry,
environmental protection,
water treatment, textile industry, medical and health work, etc



CQ Magnetic Drive Chemical Pump Model Ordering Code:



50 CQ -25


50----Inlet diameter (mm)
CQ---- Magnetic Actuated Pump
25---- Head (m)





CQ Magnetic Drive Chemical Pump Performance



Model Inlet(mm) Outlet(mm) Lift head(m) Flow(L/min) Suction head(m) Power(kw) Speed(r/min)
8CQ-2 8 6 2 15 2 0.025 2800
10CQ-3 10 10 3 19 2.5 0.025 2800
14CQ-5 14 10 5 20 3 0.12 2800
16CQ-8 16 12 8 30 8 0.13 2800
20CQ-12 20 12 12 50 4 0.37 2800
25CQ-15 25 20 15 110 4 1.1 2800
32CQ-15 32 25 15 110 4 1.1 2800
32CQ-25 32 25 25 110 4 1.1 2800
40CQ-20 40 32 20 180 7.5 2.2 2800
40CQ-32 40 32 32 200 8 4 2800
50CQ-25 50 40 25 240 8.3 4 2800
50CQ-40 50 40 40 220 7 4 2800
50CQ-50 50 40 50 130 8 5.5 2800
65CQ-25 65 50 25 280 7 5.5 2800
65CQ-35 65 50 35 450 6 7.5 2800
80CQ-35 80 65 35 850 7 11 2800
80CQ-50 80 65 50 850 7 15 2800





Tag:

CQB Magnetic Drive Centrifugal Pump,

1.1kw Magnetic Drive Centrifugal Pump,

20m head stainless centrifugal pump
