Shanghai Yingsang Electronic Technology Co., Ltd.
 |
| Place of Origin: | China |
| Brand Name: | Hydromatic |
| Certification: | ISO9001 |
| Model Number: | A27TW-2Q/SVF25 A27TW-2Q/SVF25 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | On Request |
| Packaging Details: | Paper |
| Delivery Time: | 7-10 working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000/Month |
| MODEL: | A27TW-2Q/SVF25 A27TW-2Q/SVF25 | ||
|---|---|---|---|

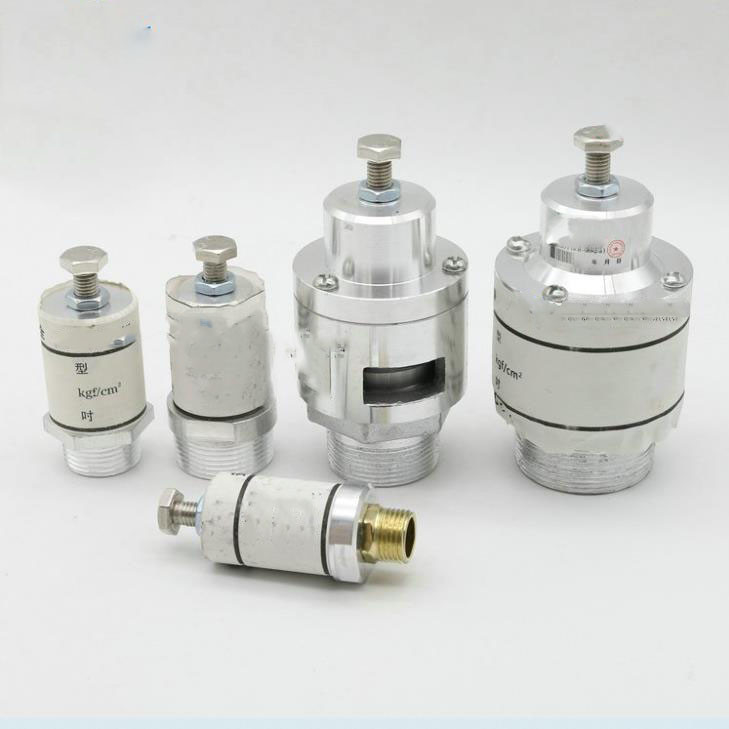

| High Light: | A27TW-2Q/SVF25,Fan Pressure Relief Valve,Large Displacement Pressure Relief Valve |
||
|
Size
|
A27TW－2Q
|
|||||||
|
SVF10
|
SVF12
|
SVF25
|
SVF32
|
SVF-50
|
SVF-80
|
SVF-100
|
||
|
Valve material
|
valve body
|
QT450
|
QT450
|
L104
|
L104
|
QT450
|
QT450
|
QT450
|
|
spool
|
2Cr13
|
2Cr13
|
L104
|
L104
|
2Cr13
|
2Cr13
|
2Cr13
|
|
|
Pressure
|
set-pressure
|
Arbitrary adjustment
|
Arbitrary adjustment
|
Arbitrary adjustment
|
Arbitrary adjustment
|
Arbitrary adjustment
|
||
|
pressure range
|
0.015－0.07
|
0.015－0.07
|
0.015－0.18
|
0.015－0.18
|
0.015－0.06
|
|||
|
0.07－0.1
|
||||||||
|
0.12－0.2
|
||||||||
|
Adaptive temperature
|
≤200℃
|
|||||||
|
Throat diameter
|
ф6
|
ф10
|
ф20
|
ф25
|
ф37
|
ф52
|
ф70
|
|
|
outline dimension
|
A
|
12
|
15
|
17
|
19
|
30
|
30
|
30
|
|
S
|
R3/8
|
R1/2
|
R1
|
R11/4
|
R2
|
R3
|
R4
|
|
|
H
|
85
|
115
|
90
|
95
|
130
|
180
|
200
|
|
|
D
|
20
|
25
|
40
|
45
|
ф80
|
ф103
|
ф126
|
|
|
b
|
|
|
|
|
|
|
|
|
|
Use fan caliber
|
ф32
|
ф40
|
ф50
|
ф65
|
ф80
|
ф100
|
ф150
|
|
|
-
|
-
|
|||||||
|
ф125
|
ф200
|
|||||||
|
Connection form of pressure relief valve
|
R3/8pipe thread
|
R1/2pipe thread
|
R1pipe thread
|
R11/4pipe thread
|
R2pipe thread
|
R3pipe thread
|
R4pipe thread
|
|
|
Size
|
A47TW-2Q
|
|||||||
|
SD-125
|
SD-150
|
SD-200
|
SD-250
|
SD-300
|
||||
|
Valve material
|
valve body
|
QT450
|
QT450
|
QT450
|
QT450
|
QT450
|
||
|
spool
|
2Cr13
|
2Cr13
|
2Cr13
|
2Cr13
|
2Cr13
|
|||
|
Pressure
|
set-pressure
|
Arbitrary adjustment
|
||||||
|
pressure range
|
0.015－0.06
|
|||||||
|
0.07－0.01
|
||||||||
|
0.12－0.2
|
||||||||
|
Adaptive temperature
|
≤200℃
|
|||||||
|
Throat diameter
|
ф120
|
ф160
|
ф200
|
ф250
|
ф300
|
|||
|
outline dimension
|
A
|
75
|
85
|
105
|
105
|
122
|
||
|
S
|
ф180
|
ф240
|
ф295
|
ф350
|
ф400
|
|||
|
H
|
390
|
495
|
505
|
530
|
645
|
|||
|
D
|
ф250
|
ф310
|
ф335
|
ф390
|
ф440
|
|||
|
b
|
ф215
|
ф280
|
ф335
|
ф390
|
ф440
|
|||
|
Use fan caliber
|
ф250
|
ф350
|
ф450
|
ф550
|
ф700
|
|||
|
-
|
-
|
-
|
-
|
-
|
||||
|
ф300
|
ф400
|
ф500
|
ф600
|
ф800
|
||||
|
Connection form of pressure relief valve
|
DN100 flange
|
DN150 flange
|
DN200 flange
|
DN250 flange
|
DN300 flange
|
|||
